AccuRapid™ Cell-Free Protein Expression kit is designed for in vitro transcription and translation of target DNA to protein in a single reaction.
AccuRapid™ Cell-Free Protein Expression Kit contains an optimized E. coli extract containing T7 RNA polymerase for transcription and all necessary components for translation. When combined with the AccuRapid™ Master mix supplied in the kit, all other required components including amino acids, rNTPs, and appropriate salts are provided enabling the expression of high levels of recombinant proteins. This kit contains reagents for 24 reactions, and each 45 ul reaction can express up to 20 ug of protein in only 3 hours directly from a variety of DNA templates which contain T7 promoter, T7 terminator and RBS (ribosomal binding site).
Features and Benefits
-
DNA-in-Protein-out simplicity: Simply add expression vector of PCR products to the Cell-Free Protein Extract/MasterMix.
-
Rapid protocol: The entire protocol is complete in 3 hours!
-
Excellent yield: Each reaction well can yield up to 20 ug of protein in only 3 hours.
-
Reproducibility: Minimal pipetting steps to maximize reproducibility.
Kit Contents
AccuRapid™ Cell-Free Protein Expression kit
(Cat. No. K-7250) |
|
AccuRapid™ Master mix |
170㎕×3 tube(Red Cap) |
|
AccuRapid™ E.coli extract |
100㎕×3 tube(Blue Cap) |
|
DNA template |
24㎕×1 tube(Green Cap) |
|
DEPC-DW |
1㎖×1 tube(White Cap) |
Storage conditions
-20°C (E.coli extract ; -70°C)

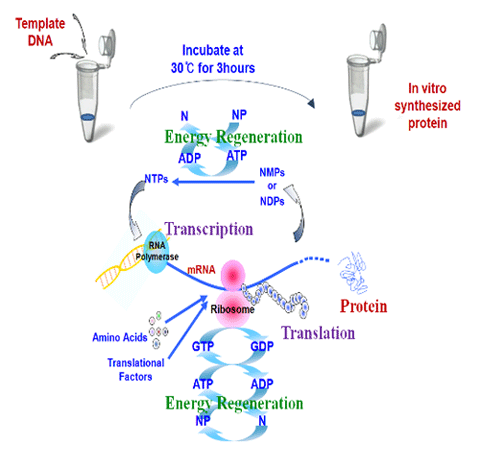

Principle of Cell-Free Protein expression system
Template DNA

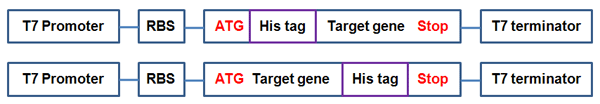

The template DNA for expression by AccuRapid™ Cell-Free Protein Expression Kit must have a "T7 promoter – ribosomal biding site (RBS) – target gene – T7 terminator" structure, and target gene must contain a histidine tag coding sequence at N-terminus or C-terminus for the protein purification.
Note 1) We recommend cloning the template DNA into our in vitro transcription/translation optimized pBIVT vector set (sold separately).
Note 2) Sometimes pET vector series such as pET15b, 22b, 23a, and 28b can also be used for the kit, though this should be tested. In addition PCR products containing T7promoter, ribosomal binding site, T7 terminator, and His-tag encoding sequences at N- or C-terminus can be used for proteins synthesis as a template DNA. The ExiProgen™ ProXpress PCR Template Kit can generate PCR templates for this purpose.
Note 3) It is recommended to use E.coli codon-optimized gene constructs, which will improve protein expression.
Note 4) The DNA template for protein expression can be synthesized through our Gene Synthesis Service, which optimizes the codons for E.coli protein expression. The synthesized gene can be cloned into our in vitro transcription/translation vector by request.
Experimental Data
1. Protein Expression using AccuRapid™ Cell-Free Protein Expression Kit

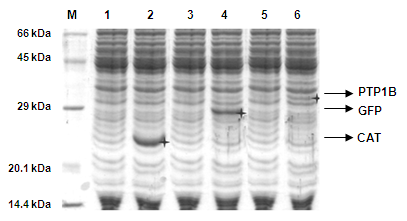

Figure 1. Protein expression Data of AccuRapid™ Cell-Free Protein Expression kit (SDS-PAGE and Coomassie Brilliant Blue staining)
Lane M;
AccuLadder™ Protein Size Marker (Low),
Lane 1,3,5; Negative control (No-DNA),
Lane 2; CAT (Chloramphenicol acetyl transferase),
Lane 4; GFP (Green fluorescence protein),
Lane 6; PTP1B(Protein tyrosine phosphatase 1B)
2. AccuRapid™ Cell-Free Protein Expression Kit expresses proteins efficiently

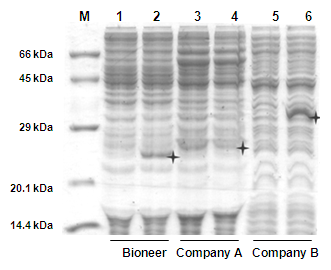

Figure 2. Comparison of protein expression between AccuRapid™ Cell-Free Protein Expression Kit and protein expression kits from other companies (SDS-PAGE and Coomassie Brilliant Blue staining).
Lane M; AccuLadder™ Protein Size Marker (Low),
Lane 1,3,5 ; Negative control (No-DNA),
Lane 2; Bioneer's Kit and control DNA,
Lane 4; Company A's Kit and control DNA,
Lane 6; Company B's Kit and control DNA
3. Determination of the optimal amount of template DNA for cell-free protein synthesis using AccuRapid™ Cell-Free Protein Expression Kit
3.1. pBIVT vector construct: GFP

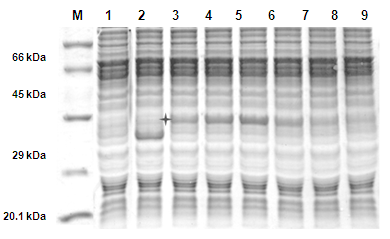

Figure 3. Determination of the optimal amount of template DNA for the expression of GFP using AccuRapid™ Cell- Free Protein Expression Kit . GFP was maximally expressed with the AccuRapid™ Cell-Free Protein Expression Kit when 200 ng of pBIVT-GFP was used.
Lane M; AccuLadder™ Protein Size Marker (Low),
Lane 1; Negative Control (No-DNA),
Lane 2; CAT (Chloramphenicol acetyl transferase),
Lane 3 ~9; pBIVT-GFP (50, 100, 200, 400, 600, 800, 1000 (ng))
3.2. pET vector construct: MMLV RTase

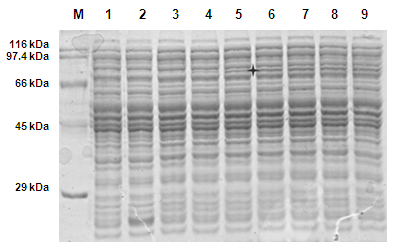

Figure 4. Determination of the optimal amount of template DNA for the expression of MMLV RTase using AccuRapid™ Cell-Free Protein Expression Kit. MMLV RTase was maximally expressed with the AccuRapid™ Cell-Free Protein Expression Kit when 600 ng of pET22b-MMLV RTase was used.
Lane M; AccuLadder™ Protein Size Marker (Broad),
Lane 1; Negative Control (No-DNA),
Lane 2; CAT (Chloramphenicol acetyl transferase),
Lane 3 ~9; pET22b-MMLV RTase (50, 100, 200, 400, 600, 800, 1000 (ng))
AccuRapid™ Cell-Free Protein Expression Kit's positive control DNA expression test

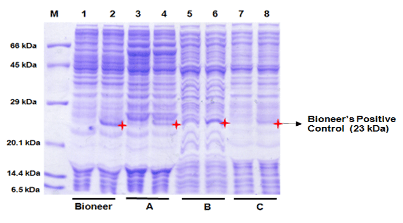

Figure 5. AccuRapid™ Cell-Free Protein Expression Kit's Positive control DNA expression test (SDS-PAGE and Coomassie Brilliant Blue staining)
Lane M; AccuLadder™ Protein Size Marker (Low)
Lane 1,3,5,7 ; Negative control (No-DNA)
Lane 2; Bionee's Kit
Lane 4; Company A's kit
Lane 6; Company B's kit
Lane 8; Company C's kit
Company A's kit positive control DNA expression test

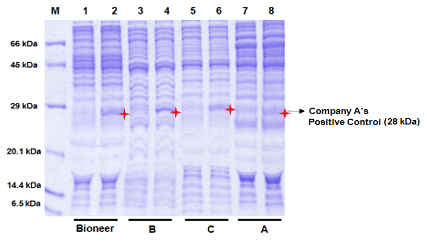

Figure 6. Company A's kit positive control DNA expression test (SDS-PAGE and Coomassie Brilliant Blue staining)
Lane M; AccuLadder™ Protein Size Marker (Low)
Lane 1,3,5,7 ; Negative control (No-DNA)
Lane 2; Bioneer's Kit
Lane 4; Company B's kit
Lane 6; Company C's kit
Lane 8; Company A's kit
Company B's kit positive control DNA expression test

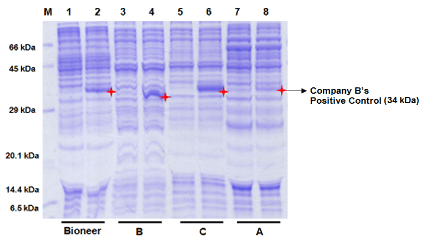

Figure 7. Company B's kit positive control DNA expression test (SDS-PAGE and Coomassie Brilliant Blue staining)
Lane M; AccuLadder™ Protein size marker (Low)
Lane 1,3,5,7; Negative control (No-DNA)
Lane 2; Bioneer's Kit
Lane 4; Company B's kit
Lane 6; Company C's kit
Lane 8; Company A's kit
